Instruction

Installation:

Estimated time less than 1 minute

Tools Required:
1. PVC Cutter
2. PVC glue
3. Spray lubricant

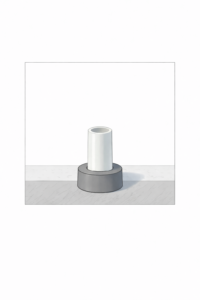

Step 1. Cut pipe off 1 1/4″ below finish floor. This will provide 3/4″ of concrete cover over the completed blockout.

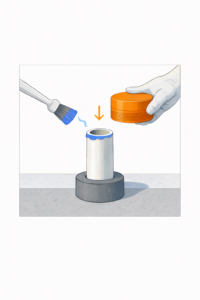

Step 2. Install foam ring over pipe and glue on cap.

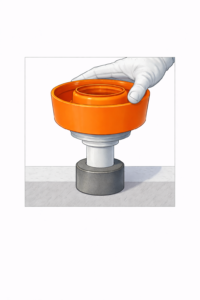

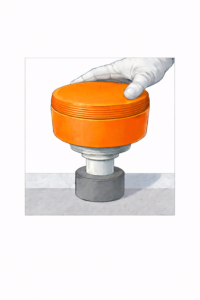

Step 3. Screw on bowl and then lid, foam will compress as bowl is screwed on.

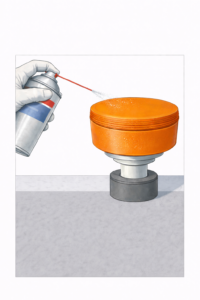

Step 4. Apply a light coat of spray lubricant to completed blockout assembly to ease removal.

Removal:

Estimated time less than 4 minutes

Tools Required:
1. Claw Hammer
2. Chipping Hammer
3. Inside pipe cutter

Step 1. Break away the 3/4″ of concrete cover above the lid. Fully exposing the lid will make bowl removal easiest. Keep lid intact while removing the concrete above.

Step 2. Use claw hammer to break through outside edge of lid, keeping away from pipe, and pry lid off.

Step 3. Use claw hammer to break through thin middle area of cap and pry off of pipe. Cap will break away around the outside perimeter.

Step 4. Cut off pipe below cap with inside cutter. Using claw hammer on the inside of pipe break loose and remove inner portion of bowl, cut off pipe, and remaining portion of cap all together.

Step 5. Lastly using claw hammer pop out a bowl shell by lifting under the lip below the threads, and pull out foam ring.
